Descripción
The ACQ580-34 drives deliver innovative pump and blower features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.

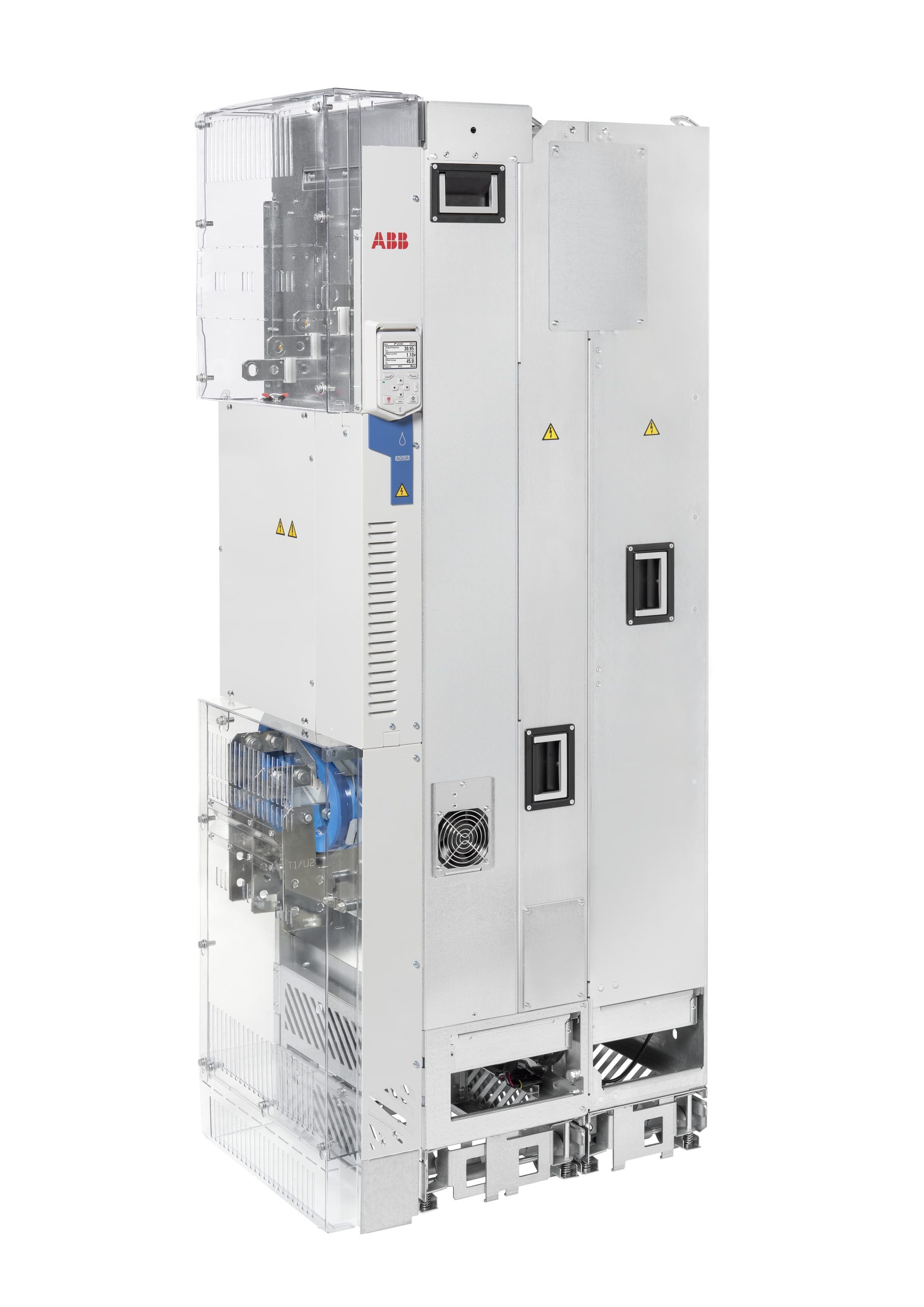

Other features include output voltage boost and power factor correction. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The ultra-low harmonic drive module variant comes in IP00 enclosure as standard and is installed into a cabinet. Also, IP20 enclosure is available.
Información adicional
| Referencia fabricante | TEMP.FIDRI3AXD50000428298 |
|---|
