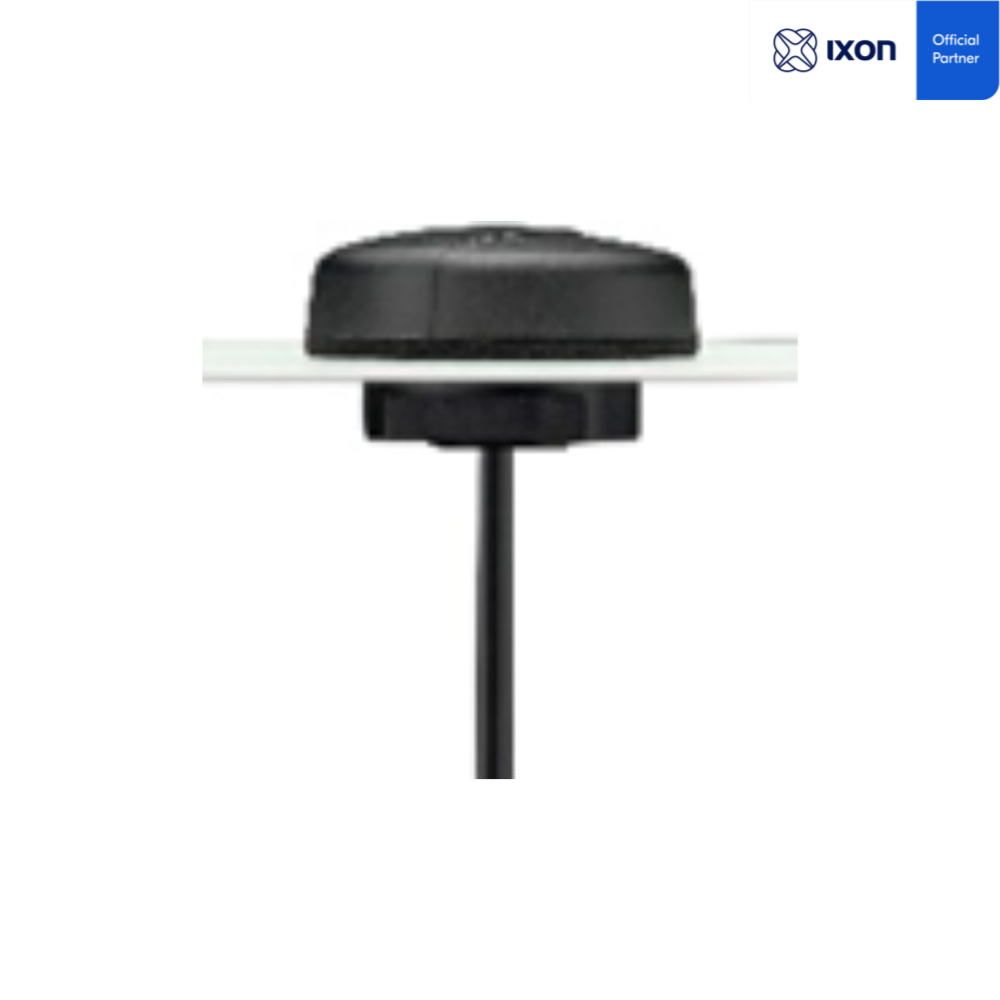

The IX2203 is an ultra-low-profile pentaband (3G/2G) antenna designed for applications requiring maximum durability and a discreet design. At just 19.5 mm in height, with screw-mounted reinforcement and IP67 certification, it is the perfect solution for outdoor and industrial environments where durability and impact resistance are critical.
Description
The IXON IX2203 industrial antenna combines a minimalist design with high-performance capabilities for global mobile communications. Its design is specifically engineered to prevent accidental damage and tampering to exposed industrial assets.
-> Extra-flat and Discreet Design: With a height of just 19.5 mm, it drastically reduces the risk of knocks and breakages, whilst maintaining the aesthetics of the machinery or electrical cabinet.
-> Extreme Environmental Protection (IP67): Its hermetic seal guarantees uninterrupted operation during temporary immersion in water and total protection against dust.
-> Reinforced Screw Mounting: The ‘Heavy Duty’ threaded fixing system ensures a permanent, vandal-resistant installation.
-> Low-Loss Cable: Includes 3 metres of low-loss NFC-200 cable with a male SMA connector, allowing flexibility in placement to maximise signal reception.
-> UV and Heat Resistance: The polycarbonate (PC) housing is UV-resistant, ensuring the antenna does not degrade in installations exposed to direct sunlight under extended industrial temperatures.
| Feature | Detailed Specification |
| Product Name |
3G Pentaband antenna screw mount with 3m cable |
| Part Number |
IX2203 |
| Antenna Type |
Low profile wide-band mobile antenna |
| Frequencies |
800 MHz to 2200 MHz (GSM/CDMA/HSPA/UMTS) |
| Dimensions |
Height: 19.5 mm / Diameter: 55 mm |
| Mounting Type |
Heavy duty screw mount |
| Protection Rating |
IP67 compliant |
| Cable / Connector |
3 meter low loss NFC-200 / SMA Male |
| Operating Temp. |
Extended industrial range |
| Compliance |
RoHS compliant |
Additional information
| Fabricante | IXON |
|---|
